Home » » Ventilation » 3A-04 Adjustable ventilator, aluminium, with insect screen

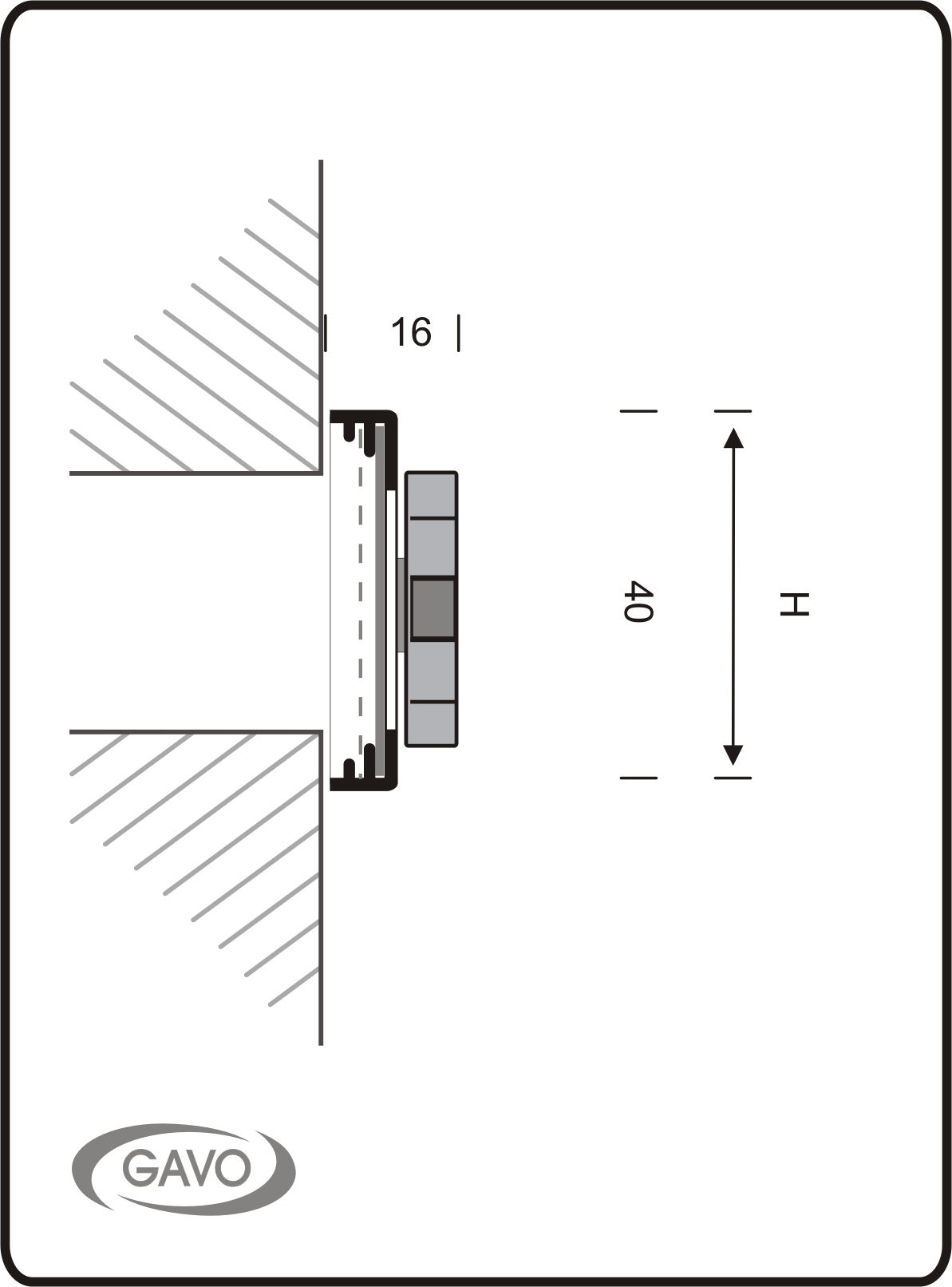

3A-04 Adjustable ventilator, aluminium, with insect screen
Adjustable ventilators manufactured from aluminium, surface mounted. Vents with a turning knob can also be operated with a cord.
Application
These adjustable ventilators can be used inside for air circulation. For matching fixed louvred ventilators, see 1-series.Standard
- finished with a high quality corrosion resistant powder coating.
- aluminium insect screen.
- fixing holes.
Options
- other dimensions, see G41.
- powder coating in RAL colours.
- cord operated turning knob.
Product range
| Article number | Size | Specification | Gross price | |
| B | H | |||
| 3-3004AA | 300 | 40 | anodised | On request |
| 3-3004W | 300 | 40 | white, RAL 9010 | On request |
| 3-3704AA | 370 | 40 | anodised | On request |
| 3-3704B | 370 | 40 | brown, RAL 8017 | On request |
| 3-3704W | 370 | 40 | white, RAL 9010 | On request |
| 3-3704Z | 370 | 40 | black, RAL 9005 | On request |
| 3-5004AA | 500 | 40 | anodised | On request |
| 3-5004W | 500 | 40 | white, RAL 9010 | On request |
| 3-7504AA | 750 | 40 | anodised | On request |
| 3-7504W | 750 | 40 | white, RAL 9010 | On request |
| 3-10004AA | 1000 | 40 | anodised | On request |
| 3-10004W | 1000 | 40 | white, RAL 9010 | On request |
| G41-KB | 1400 | Cord for adjustable ventilators, not attached | On request | |
Files
| 3A-04.pdf |
